DESCRIPTION
SPECIFICATIONS
- Color Black
- Dimension Structure: 400(L) x 201(W) x 435(H)mm

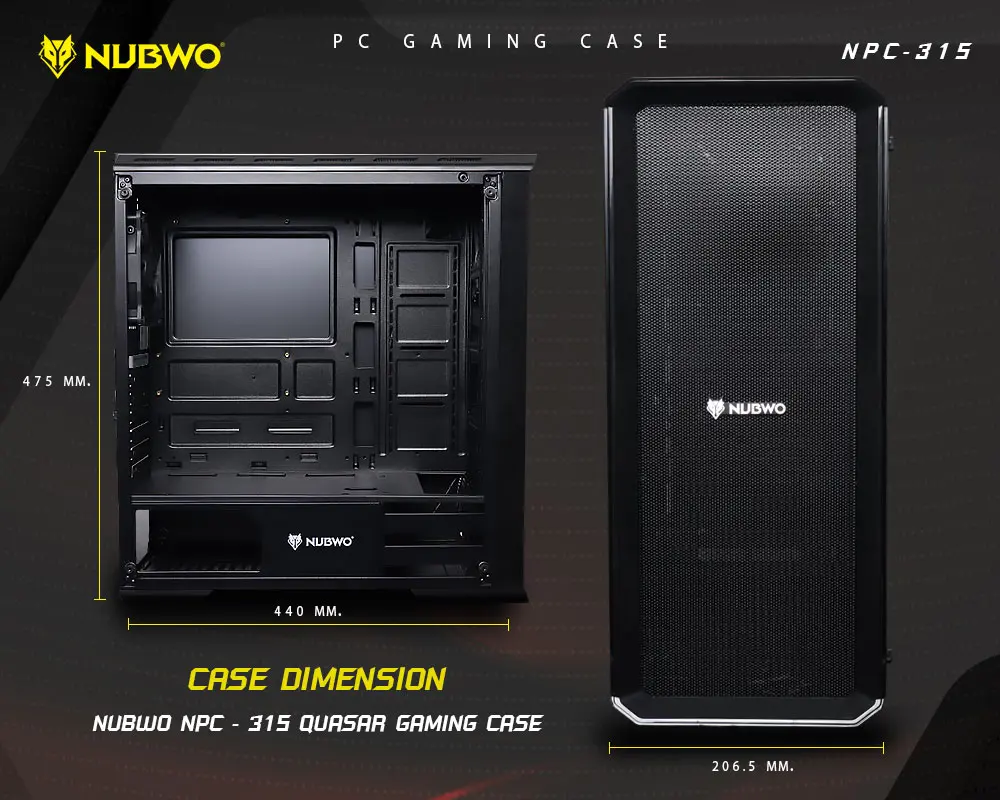

- Case: 440(L) x 206.5 (W) x 475(H)mm
- Carton: 494(L) x 269(W) x 549(H)mm
- Material Both 2 side board 4.0mm Tempered Glass – Coating Film; The rest including internal structue made of SPCC in 0.50mm; Panel: ABS
- Plastic + Iron Net (With Anti-Dust Cover); Silk print logo on PSU Cover;

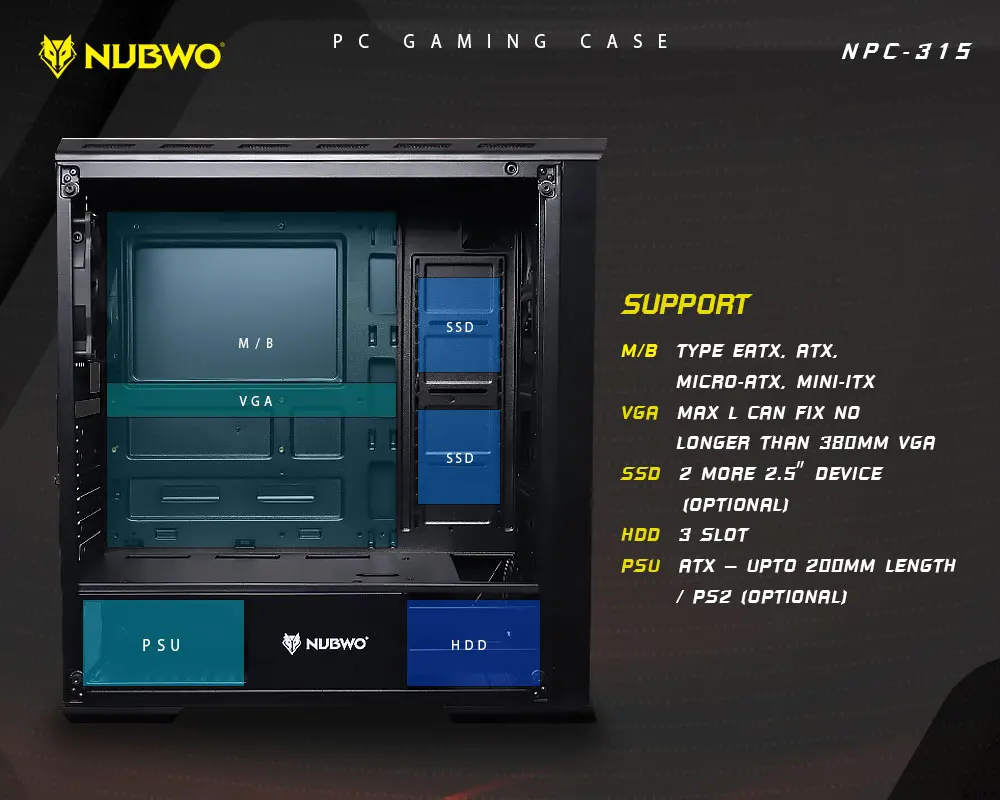

M/B Type EATX, ATX, Micro-ATX, Mini-ITX - External None
- Internal 3.5″x3 + 2.5″x3+ 2.5″x2 with Bracket in back side (Optional)
- Converted Bracket Back Side can add SDD Bracket to fix 2 more 2.5″ device (Optional);
- CPU MAX H Can fix no higher than 160mm CPU
- VGA MAX L Can fix no longer than 380mm VGA

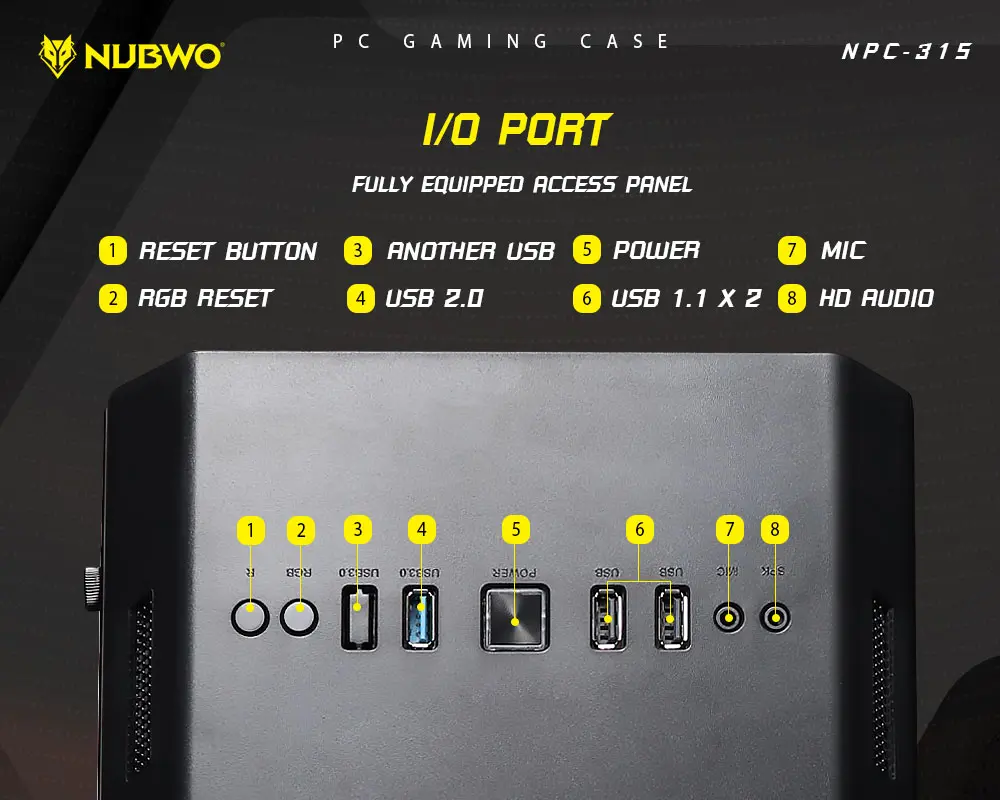

- I/O Panel Real USB3.0 x 1 + USB1.1 x 2; Another USB 3.0 (Optional);
- With RGB Fan Control (Optional); Normal Microphone x 1 & HD Audio x 1;
- Cord design Back plate wire routing
- Expansion PCI Slots Standard x 7
- Cooling System Front: 12cm Fan x 3 or 14cm x 2 (optional), or 240mm water cooling(optional)
- Rear: 12cm x 3 or 14cm x 2 Fan x 1 (optional)
- Top: 12cm Fan x 2 or 14cm x 2 (optional)

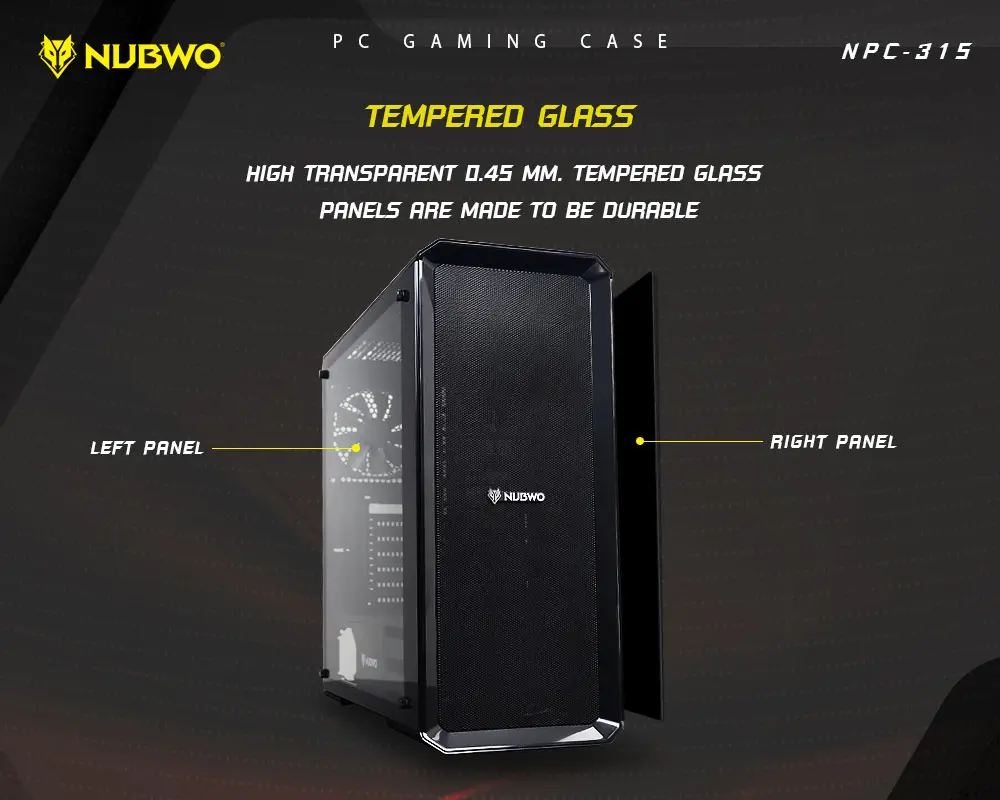

- Side_L 4.0mm Tempered Glass – Silk Print
- Side_R 4.0mm Tempered Glass – Silk Print
- PSU ATX – Upto 200mm length / PS2 (Optional)
- FAN 2 PSC/1 CASE
